What is Rice Packing Machine and How do Use, Install, and Fix it?
What Is The Rice Packing Machinery?
First, the whole weighing process can be divided into three stages: fast feeding, faster feeding, and slow feeding, each stage is perfect. At the same time, it can be equipped with automatic sewing equipment and conveying equipment to form a highly automated production line.
Second, after the packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow two-stage feeding mode; when the weight of the material reaches the set value of the fast feeding, the fast feeding is stopped. Keep feeding slowly; when the weight of the material reaches the final set value, close the feeding door to complete the dynamic weighing process; at this time, the system detects whether the bag clamping device is in a predetermined state, and when the bag is clamped, the system sends a control signal Open the weighing hopper discharge door, the material enters the packaging bag, the discharge door of the weighing hopper is automatically closed after the material is discharged; the bag clamping device is released after the material is discharged, the packaging bag automatically falls; the packaging bag is sewn after it is dropped And transport to the next station. In this way, it runs reciprocally and automatically.
What are The Advantages of a Packing Machine for Rice?
1. Packaging machinery has a wide range of uses in the market: food, chemical, pharmaceutical, and light industries are all used (and some agriculture production).
2. Easy to use (automatically complete bag making, metering, blanking, sealing, slitting, counting, batch number printing, and other functions.)
3. High efficiency: The output of packaging machines in the Chinese market can be close to 120-240 pack minutes to replace the handmade products in the 1980s, and the output is much more than several times that of the time.
4. Clean, hygienic, and energy-saving. Use the packaging machine to be clean and hygienic, no manual work is required. It is possible to use clean, hygienic, material-saving, bag-saving, cost-saving, and environmentally friendly functions.
5. Side-opening protective baffle with good visibility, and safe operation.
What is The Raw Material to Pack?
Various crystal, granular, and fine granular materials. For example chemical raw materials, washing powder, salt, feed, yeast, food, sugar, chicken essence, monosodium glutamate, seeds, grains, melon seeds, etc.
How to Install The Rice Packing Machine?
1. Unpack the wooden box, take out the control cabinet, remove the base fixing screws, and remove the sensor protection tube.

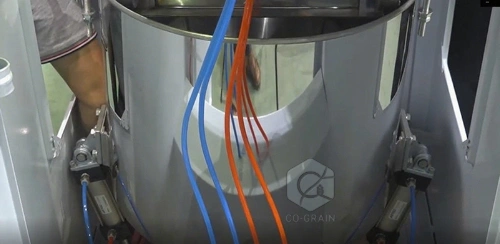

2. Fix the screws of the feeding mechanism, connect the clip bag tracheas(in red up and blue at down), position the machine, and lock the anchor screws.
3. Connect the equipment part with a transfer machine and tighten the screws, Install and fix the air F.R.L. On the left side of the metal rack. Connect the machine inlets, install the control cabinet on the right side of the machine, and connect the clip bag switches, control bus switches, and sensor cables. lock the window panels.
What is the Daily Maintenance of the Rice Packing Machine?
1. The equipment must be touched the grounding wholly, and the grounding resistance must be lower than 4Ω, and avoid being disturbed by nearby electromagnetism and electricity.
2. Keep it clean and clear up dust instantly to prevent them from entering the controller box, electricity, air changing box, switch, etc. Meanwhile, keep water, oil, and metal out of them, the manual switch-control and button must be checked and cleaned termly.
3. If the machine doesn't work, hand over, or has few materials in the storage, the scale must be in pause, and clamp package bag to make the scale in a state of low waste, and avoid the scale being in the state of feeding, esp. in quick feeding.
4. Less to use manual operation as it is easy to bring beyond error. If the beyond error is taken, you need to weigh it, then start to sew or heat seal. When we use a manual operation to feed, we can't lose the feeding button until completing feeding so as not to make material in the storage spill out.
5. The power supply will be under protection if a switch is changed in less than 15 seconds, so you need to keep 15 seconds to turn it on after the machine is turned off.
6. The dust and sundries of scale must be cleaned by compression air, then turn off the power supply and air source.
How to Solve the Problems When Using the Packing Machine?
Q1: If when you received the machine and finished installation, the machine can't scale normally
A1: you need to check the screw in the bucket on two sides. if it is still in there, you need to remove it then the machine will start working.
Q2: if the machine is shaken when it works.
A2: you can check the screw which is the Fixing screw, you can fix it.
