How to Properly Use A Rice Mill Machine?

Many clients will ask how to use and maintain the rice mill machinery before ordering or after getting the machines. Today let us talk about something that needs to be noticed especially.

Rice Milling Machine Structure

The combined rice milling machine consists of elevators, paddy destoner cleaner, rice huller, paddy rice separator, rice whitener, and broken rice screen. which are connected by elevators, working automatically. It can labor and energy, and increase working efficiency greatly.

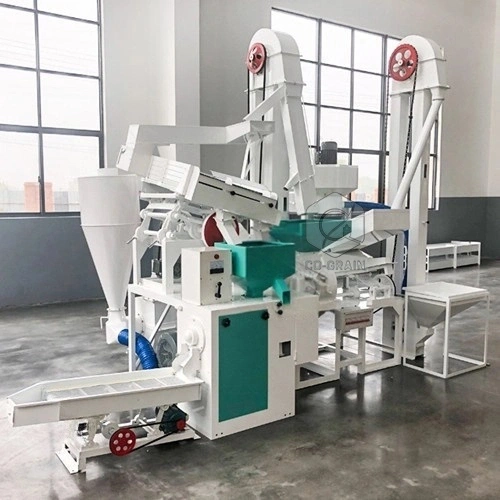

rice_mill

Precautions When Using a Rice Mill

1. Paddy destoner cleaner is used to remove the stone and impurities from raw paddy. But some clients will meet the problem of stone outlet will discharge the paddy. This is because the air door on the pipe does not adjust well. Or the draught fan motor is connected in reverse. After adjusting well, the machine will work well.

2. Rice huller is the machine to remove the husk from the paddy and get brown rice. Its hulling rate can reach 85-90%, if, with the high broken rate or low hulling rate, The rubber roller is either too tight or too loose, need to adjust the rubber rollers' space correspondingly.

3. Paddy rice separator, working will affect the following machines working. So it is a key part of rice processing plants. The separator screen must be full. It has 2 outlets. The upper one and the below one. The upper one should be closed until the screen is full of paddy, then open (brown rice to whitener machine). The below outlet is open all the way (raw paddy to rice huller again)

4. Rice whitener is to make brown rice white. To reduce the broken rate and milling time, firstly the machine should be closed. Until it is full with around 2/3 brown rice, then open the machine. Also can adjust the pressure mold to control the broken rate and whitening degree.

5. Elevator, we need to notice the first one, feeding the paddy at a uniform speed to avoid its block.

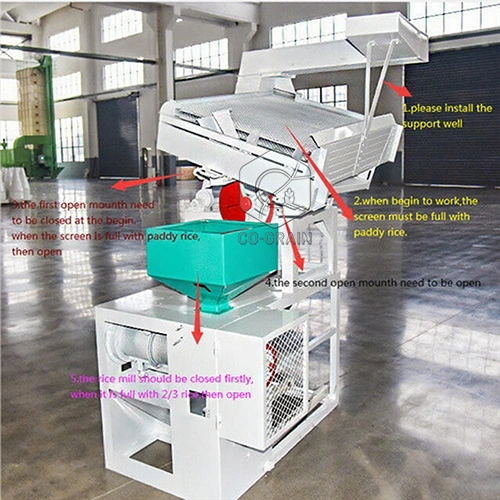

rice_mill_machine

We must be to observe every step carefully to ensure that each step is skillfully operated to achieve continuous operation of the whole rice mill plants machine

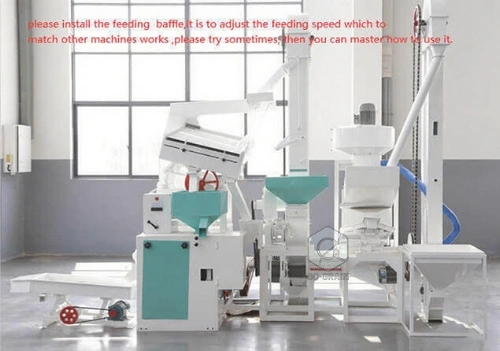

rice_process_machine

How to maintain each machine in rice processing plants

After learning how to use the rice mill machinery, they also need to know how to maintain the machines to guarantee their long-time service.

1. Paddy destoner cleaner: The screen should be inspected and cleaned every shift to prevent clogging of the screen holes. The screen should be replaced timely if damaged. Also, need to clean the grains and fine sand in the hood regularly.

2. Rice huller: When the fast roller rubber layer is worn to about half, the fast and slow rollers can be used interchangeably. When the rubber layer of the rubber roller wears out and the iron core is exposed, new rubber rollers should be replaced. The two rollers should be replaced at the same time, and the surface of the rubber roller should be kept flat.

3. Paddy rice separator: Check the lubrication condition of the transmission part, and add lubricating oil (grease) in time.

4. rice whitener: The chaff suction fan impeller and air duct should be cleaned once every two months.

5. Common maintenance of each machine:

(1)Maintain one time every 3 months and overhaul one time a year.

(2)Lubricating oil should be added to each transmission part regularly.

(3)The bearing is generally replaced with grease one time every 6 months.

(4)Where the bearing is overheated, the grease is hardened, the oil color becomes dark, or the oil surface has water droplets and dirt, must replace the grease immediately.

(5)When finding the machine vibrates violently, should shut down the machine immediately for an inspection.

We Hongjia Grain Machinery Co, Ltd are more professional in rice mill plant manufacturing with rich experience. Our rice mill machinery has been exported to many countries such as Nigeria, Ghana, Tanzania, Zambia, Malawi, Benin, Kenya, Togo, Burkina Faso, Mozambique, Senegal, Côte d'Ivoire, Uganda, Cambodia, Indonesia, Philippines, Peru, Mexico, etc.

With high quality, all get good feedback from clients, even some clients will meet some small problems during installation or use, but under our guidance, they solve it soon. Also satisfied with our after-sale service. So no worry to cooperate with us. we guarantee you quality, timely delivery, and after-sale service.

rice_mill_plant

Our services are as follows:

1. According to the client's requirements, we recommend suitable machines and spare parts

2. After talking well with a client, we can design the complete project including rice milling processing flow and layout

3. Good machine manufacturing and timely machine delivery after the order

4. Arrange engineers for installation and guide and train clients on how to use and maintain the machine

5. Good after-sale service,one-line video for guiding

Hongjia Grain Machinery Co., Ltd. was established in 2000. It is a professional manufacturer and exporter of rice mills, rice processing machines, rice processing plants, rice processing plants, paddy parboiling plants, etc. We can provide a unique overall layout design, customized rice mill products, and installation services for the rice mill production line according to the different needs of customers and site conditions. It combines technology, manufacturing, and sales in one.

If You Are Ready to Start a Rice Milling Business, please contact us for the Rice Milling Machine. We Can Provide Professional Design and Comprehensive Guidance According to Your Needs. Get in touch with us now!
